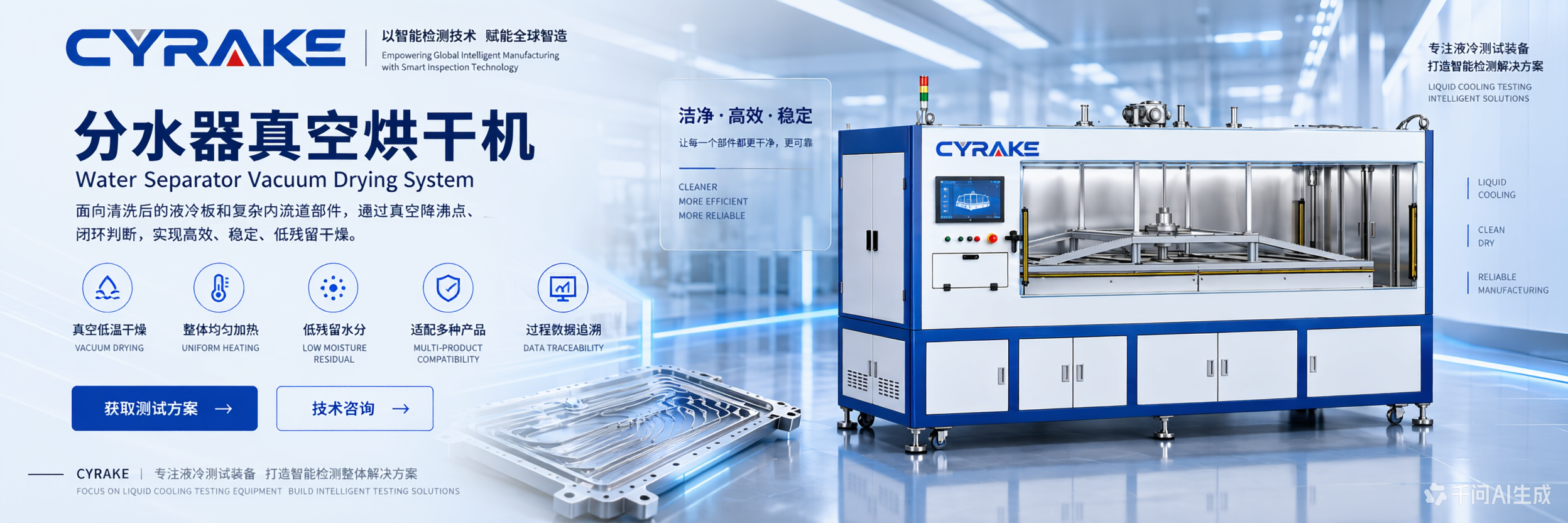

Water Separator Vacuum Dryer
产品优势
Low-Temperature Boiling Drying
Vacuum environment lowers the boiling point of water, reducing the impact of high temperatures on workpieces and sealing materials.
Uniform Overall Heating
Chamber-wide heating combined with multi-point temperature monitoring ensures batch consistency.
Humidity Closed-Loop Determination
Automatically determines drying completion based on residual humidity or moisture trend.
Automated Process Recipes
Automated execution of vacuuming, heating, holding, re-vacuuming, and venting.
Clean Vacuum System
Dry screw vacuum pump with gas-liquid separation and condensation recovery minimizes oil backflow contamination.
Reporting & Traceability
Temperature, vacuum, humidity, and time curves are automatically saved and compiled into reports.
技术参数
| Equipment Name | Water Separator Vacuum Dryer |
| Compatible Workpieces | Open-type workpieces without connectors such as manifolds (length < 2200 mm) |
| Applicable Processes | Post-cleaning deep water removal, in-process dehumidification, pre-encapsulation vacuum drying |
| Main Power Supply | AC 380V, 3-Phase, 5-Wire; Total Installed Power 10–22 kW |
| Operating Environment | Standard Workshop 10–40℃ |
| Maximum Baking Temperature | 120℃ |
| Empty Chamber Heat-Up Time | Empty chamber heat-up to rated temperature ≤ 20 min |
| Typical Process Temperature Range | 40–80℃ Continuously Adjustable with Precise Constant Temperature |
| Chamber Temperature Uniformity | Full-chamber temperature deviation ≤ ±5℃ |
| Temperature Control Accuracy | ±1℃ |
| Heating Structure | Chamber-Wide Overall Heating |
| Ultimate Vacuum Level | ≤ 600 Pa (absolute) |
| Effective Pumping Speed | 15–80 m³/min, expandable as needed |
| Drying Cycle Time | Full drying cycle 15–45 min per batch for standard workpieces |
| Operating Mode | Fully Automatic: Vacuum → Heat-Up → Hold → Re-Vacuum → Pass Determination → Stop & Vent |
| Real-Time Monitoring | Full-process dynamic curves for temperature, vacuum level, humidity, and time |
| Data Traceability | Automatic drying report generation with Excel/PDF export support |
| Expansion & Integration | Supports barcode traceability, MES networking, and production line automation integration |
| Vacuum Pump Unit | Dry Screw Vacuum Pump, Low Water Vapor Tolerance, No Oil Backstreaming |
| Safety Protection | Automatic alarms for over-temperature, over-pressure, water shortage, and faults; emergency stop |
| Process Compatibility | Seamlessly integrates into cold plate cleaning → drying → airtightness/flow resistance full-process lines |
| Dimensions | L×W×H: 2300×1400×2200 mm |
* 以上参数为标准机型配置，其他特殊需求可定制。
适用产品
暂无图片
CPU/GPU Liquid Cold Plates暂无图片
Energy Storage Water-Cooled Plates暂无图片
Manifold Branch Pipes暂无图片
Complex Internal Cavity Components暂无图片
Pre-Encapsulation Workpieces测试流程
Workpiece Loading
Chamber Door Interlock
Pre-Vacuuming
Heat-Up & Hold
Deep Vacuuming
Humidity Determination
Cooling & Venting
Reporting & Unloading
上位机界面 / 数据追溯
Multi-Model Parameter Recipe Storage with One-Click Recall
Real-Time Display of Pressure, Flow, Temperature, Vacuum Level & Time Curves
Automatic Pass/Fail Determination with NG Latch
Barcode Binding, Historical Query & Access Control
Auto-Generate PDF, Excel or CSV Reports
Supports MES, ERP & Customer Database Interfaces
可选配置
High-Temperature 120℃ Module
Deep High-Vacuum Pump Unit
Nitrogen Vacuum Break
Condensate Metering
Automatic Door & Logistics Integration
MES / Barcode Traceability
